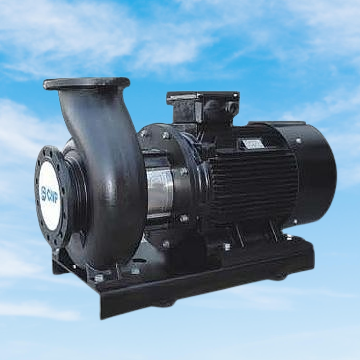

NISO 200-150-400/110SWHZ NISO series end suction centrifugal pump

Category : Horizontal single-stage centrifugal pump
Voltage (V) : 380
Rated power (kW) : 110
IP protection rating : IP55
Rated flow rate (m³/h) : 400
Rated head (m) : 62
Maximum flow rate (m³/h) : 510
Maximum lift(m) : 64
Flange Standard : DIN flange
Connection : Flange
Import size : DN200
Outlet size : DN150
Pump body material : cast iron
Impeller material : cast iron
Mechanical seal material : Graphite/Silicon Carbide
Medium temperature (℃) : -15℃~110℃
Applicable media : Clean, thin, non-corrosive, non-flammable and non-explosive liquid that does not contain solid particles or fibers
