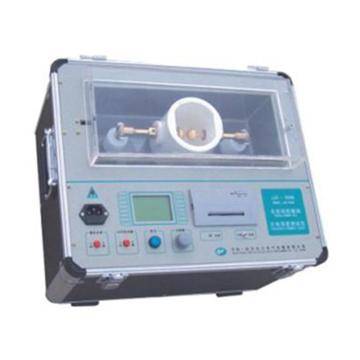

JJC956B (Single Oil Cup) Microcomputer Insulating Oil Dielectric Strength Tester

Estimated delivery : 45 Days; MOQ : 1 PC
category : Insulating oil dielectric strength tester
Features :
This instrument is equipped with an automatic detection function. When powered on, it automatically enters the reset state and returns the voltage regulator to zero.
It uses a micro TPU-A panel printer for automatic print output.
Automatically execute four sets of standard procedures according to the requirements set by the user (national standard/ministerial standard/ICE standard/user-defined standard).
This instrument uses fully automatic magnetic vibrator stirring to eliminate unevenness and bubbles in the oil sample.
Automatically displays the tested dielectric strength in kV/mm.

Technical Parameters Specifications :
Measuring range: 0～80kV
Error: ±(1%RD＋1kV) (RD is the reading value)
Display mode: 128×64 dot matrix backlight LCD display
Boost speed: 2±0.4kV/s
Electrode form: standard flat plate/hemispherical (one of the electrode forms oil cup is provided according to user requirements)
Electrode gap: standard 2.5mm
Environmental conditions: temperature 10℃～30℃, relative humidity <85%
Working voltage: AC 220V±22V, frequency 50±1Hz
Weight: 20kg
