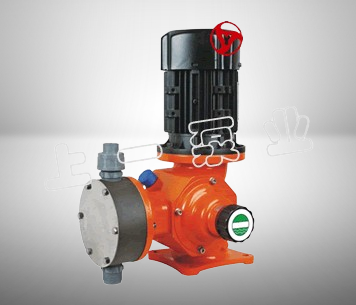

GM Mechanical Diaphragm Metering Pump

Product Introduction

Flow range: 0-500 L/H
Pressure range: 0-1.0 MPA
Motor power: 370W, 220V / 380V / 420V / 110V, 50/60Hz
Drive system: two-phase, three-phase motor or explosion-proof motor
Protection level: IP55
Flow control: manual control, automatic control (receive 4-20mA signal)

﹥Introduction to materials
Pump head: SUS304, SUS316, PVC, PTFE
Diaphragm: PTFE
Check valve: SUS304, SUS316, PVC, PTFE
Valve ball: ZrO2, SUS304, SUS316, ceramic

﹥Working conditions
Ambient temperature: -30℃ --- 60℃

Features

1. Safe operation, mechanically driven diaphragm. |
2. Good sealing, no leakage, simple and safe assembly and maintenance.
3. It can transport high viscosity media, corrosive liquids and dangerous chemicals.
4. Flow regulation can adjust stroke length or motor frequency.
5. The diaphragm is made of a multi-layer composite structure. The first layer is super-tough Teflon acid-resistant film, the second layer is EPDM elastic rubber, the third layer is 3.0mmSUS304 supporting iron core, the fourth layer is reinforced nylon fiber, and the fifth layer is completely covered with EPDM elastic rubber, which can effectively increase the service life of the diaphragm.
