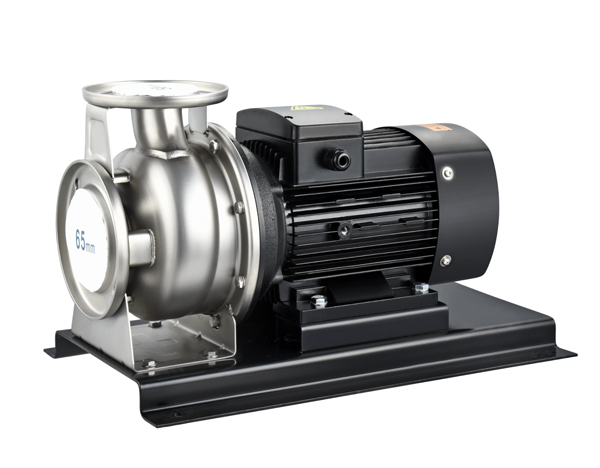

DSTL Series Single Stage End Suction Pump

Product Introduction
Dayuan Pump Industry's DSTL series single-stage end-suction pump is an end-suction single-stage centrifugal pump produced using advanced processes such as stamping (stretching, expansion, cold extrusion) and welding. It has high component interchangeability and is suitable for small flow rates and high lifts. It has the characteristics of beautiful appearance, light structure, high efficiency and energy saving, durability, resistance to light corrosion, and low noise.

Features

1. Ultra-wide voltage operating range 340v-420v 2. Bearing high temperature grease, mechanical seal machined graphite to silicon carbide material 3. Electrophoretic coating process for flow-through parts 4. High efficiency, good energy saving effect 5. Protection level, up to IP54

Application Areas :
Dayuan Pump DSTL series single-stage end-suction pumps are mainly used in the following fields:

1. Water supply: water plant filtration, transportation, zoned water supply and main pressure boosting
2. Industrial boosting: process water system, cleaning system
3. Industrial water: boiler feed water, condensation system, cooling and air conditioning system, machine tool supporting, acid and alkali transportation
4. Water treatment: distillation system or separator, swimming pool, etc.
5. Others: farmland irrigation, petrochemical industry, medicine and health, etc.

Performance range :

1. Flow rate: maximum 200m³/h
2. Head: maximum 70m
3. Temperature: maximum 100℃
4. Speed: 2900rpm 5. Maximum power: 37kw
