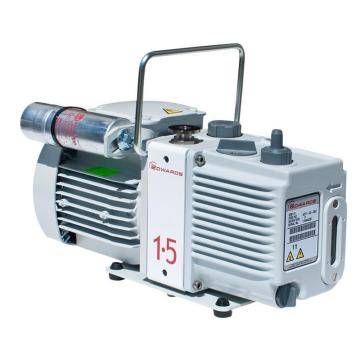

A37132919 E2M1.5 EM series rotary vane high vacuum pump,200-230V 50/60HZ IEC

Estimated delivery : 120 Days; MOQ : 1 PCS
Product Introduction Overview :
The E2M1.5 is a two stage, oil sealed rotary vane pump suitable for many bench type applications. The pump has an alternative inlet connection location on the side of the pump to minimise overall installation height if required.
Interlayer models feature an additional pumping port to provide a rough degree of vacuum for auxiliary work.
Supplied with: Ultrgrade 15 oil, NW O-rings and centering rings.
Features ;
Compact size.
Low energy consumption.
Interlayer models feature an additional pumping port to provide a rough degree of vacuum for auxiliary work.
The pump is a free standing unit.
The drive is provided by a single-phase or three-phase (four-pole) motor via a live coupling.
The motor is fully enclosed and cooled by a motor cooling fan.
Easy to use controls
Pressure die-cast oil tank with integrated oil seal prevents oil leaks.
Airbag valve for bulk water vapor handling.
Tested by external agencies and meets EN61010, CSA, C22.2 and UL61010 standards.
The pump is designed for reliable long-term operation.

Technical Parameters Specifications :
Voltage (V) : 200-230
Power (kW) : 0.16
Pumping rate (m3/h) : 2
Operating temperature range (°C) : 12~40
Intake and exhaust interface : NW10
Category : Rotary vane vacuum pump
