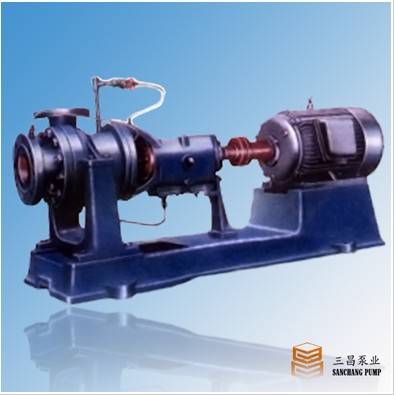

100R-37A; R type hot water circulation pump

R-type hot water circulation pump is a single-stage single-suction and two-stage single-suction cantilever centrifugal pump, suitable for metallurgy, power stations, chemical industry and other departments, used to transport high-pressure hot water below 250℃ without solid particles. The maximum temperature of the hot water to be transported is 250℃, and the maximum inlet pressure of the pump is 5MPa; when the hot water temperature is not higher than 250℃, the inlet pressure of the pump should not be greater than 3MPa.
R type hot water pump parameter range:
Flow rate Q 14.4416m 3 /h
Lift H 3480m

R-type hot water pump model description:
100R-37A
100－Indicates that the inlet diameter is 100mm
R－Indicates hot water circulation pump
37-indicates that the pump design head is 37m
A－Indicates the change of impeller outer diameter

R-type hot water pump structure:
The pump is single-stage single-suction and two-stage single-suction cantilever type, sealed with floating rings, and the bearings are rolling bearings and ball bearings, lubricated with thin oil.

R type hot water pump rotation direction:
Viewed from the motor end, the pump rotates counterclockwise.
